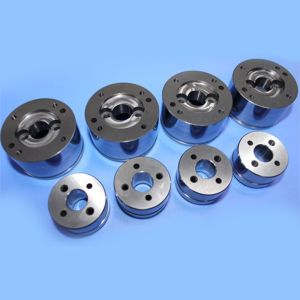

    Buy cheap Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold from wholesalers

    Buy cheap Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold from wholesalers
    • Buy cheap Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold from wholesalers
    • Buy cheap Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold from wholesalers
    • Buy cheap Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold from wholesalers
    • Buy cheap Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold from wholesalers

    Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold

    Ask Lasest Price
    Brand Name : Sanxin
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10-50000pcs/month
    Delivery Time : 15~45 Days
    Model Number : SX2033
    • Product Details
    • Company Profile

    Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold

    Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold

    Carbide Mold Introduction

    Brand Name

    OEM
    Die TipePrecision tungsten carbide punch
    Draw FormatAuto CAD/DWG/PDF ect
    Tolerance±0.002mm
    HardnessUpon request
    Mould sizeCustomized size
    Production ApplicationMobile/ laptop/ digital cameral/ HD digital TV/ automobile/ electron ect
    CertificateISO 9001:2008 & ISO 14001:2004
    Surface TratementPolishing/ mirror polishing/ plating/ heat treatment or according to your parts
    Precision MachiningCNC/ surface granding machine/ punching machine/ sandik wire cutting/ EDM/ WIDA optical curve grinder ect
    Measuring InstrumentsProfile projector/ electronic height gauge/ 2D measuring instrument/ vernier caliper/ microscope/ micrometer ect
    Steel MaterialKD20/ DC53/ GD650/ SKD11/ SLD/ YG15/ CR12MOV/ SKH-9/ Tungsten ect
    Mould LifeDepends on the steel material and your request
    Main ServiceMade-to-order


    Carbide Mold Details:


    • Non-magnetic Properties: Utilizing non-magnetic tungsten carbide superhard alloy material with high hardness, strength, and wear resistance, suitable for the production and processing of magnetic metal products or mechanical components requiring non-magnetic properties.
    • Wide Applicability: Mainly used for the production of magnetic ring rotors, magnetic ring cavities, sensing magnetic rings, and other mold components for fixed rotor motor mechanical equipment.
    • Enhanced Production Efficiency: Superior performance replaces traditional non-magnetic steel, significantly improving production efficiency.
    Product SpecificationsParameters
    Non-magnetic Tungsten carbide Rotor Mold Core
    Diameterφ35.4
    Inner Diameterφ16.91
    Heightφ13.92
    Corner RadiusR1.5
    Groove Widthφ13
    Groove Depth21.35
    Screw SpecificationsM4*2
    Drill Specificationsφ4
    Non-magnetic Tungsten carbide Rotor Mold Cavity
    Maximum Diameterφ50.5
    Inner Diameterφ35.4
    Heightφ30
    Inner Groove Diameterφ14
    Inner Groove Depth29.2
    Screw SpecificationsM42, M52
    Drill Specificationsφ8*2, φ3

    Customization Services: Based on customer-provided drawings for fixed rotor motor mechanical equipment molds, we offer customized production of non-magnetic tungsten carbide rotor mold cores and non-magnetic tungsten carbide rotor mold cavities to ensure products meet precise size and quality requirements.

    Advantages:
    As a cemented carbide manufacturer in Zhuzhou, we rely on the cemented carbide production technology and combine with years of production experience and advanced processing equipment to provide alloy molds, carbide wear parts, and hard alloy parts. According to the customer's specific requirements and drawings, we provide the best service to meet the needs of our customers.
